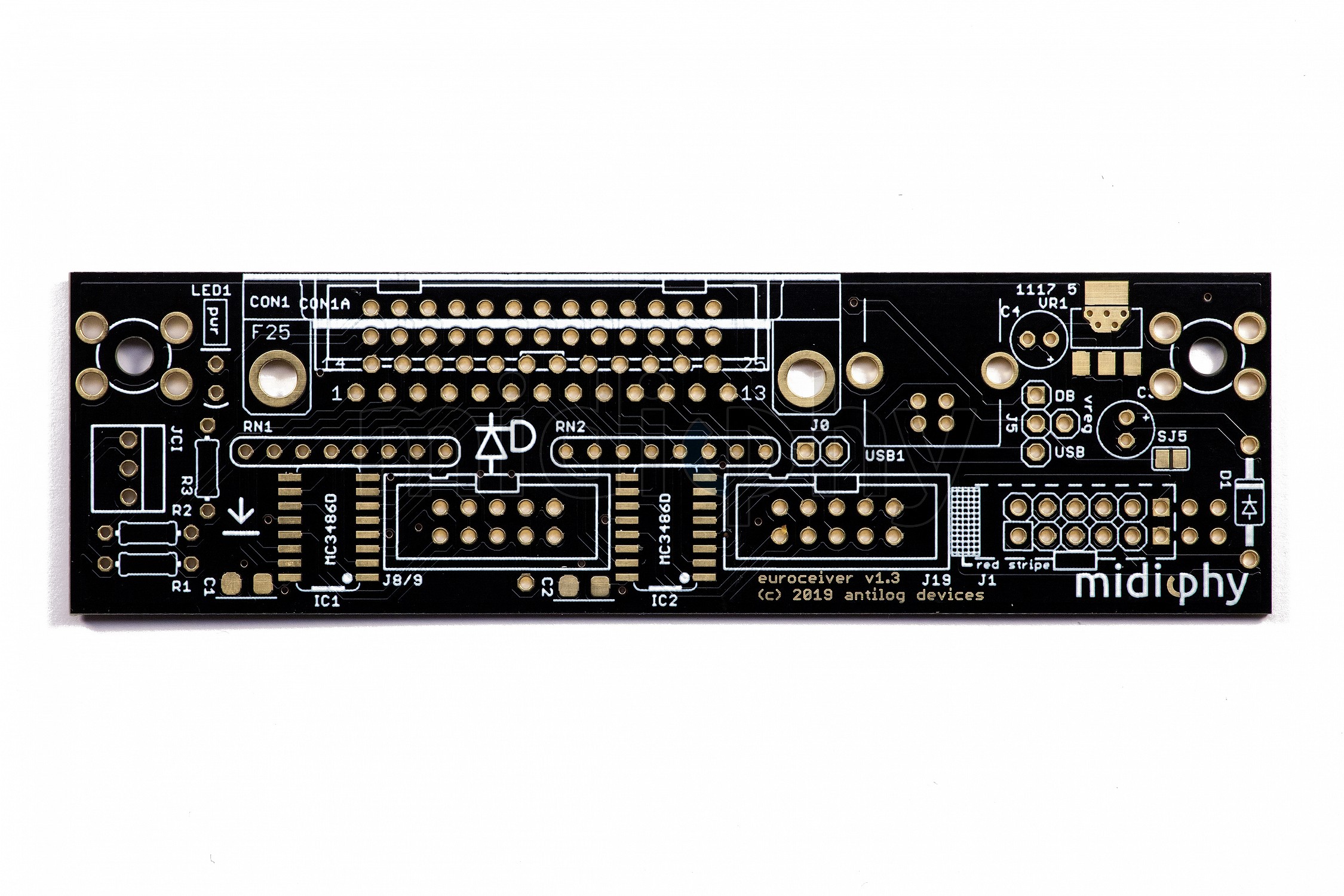

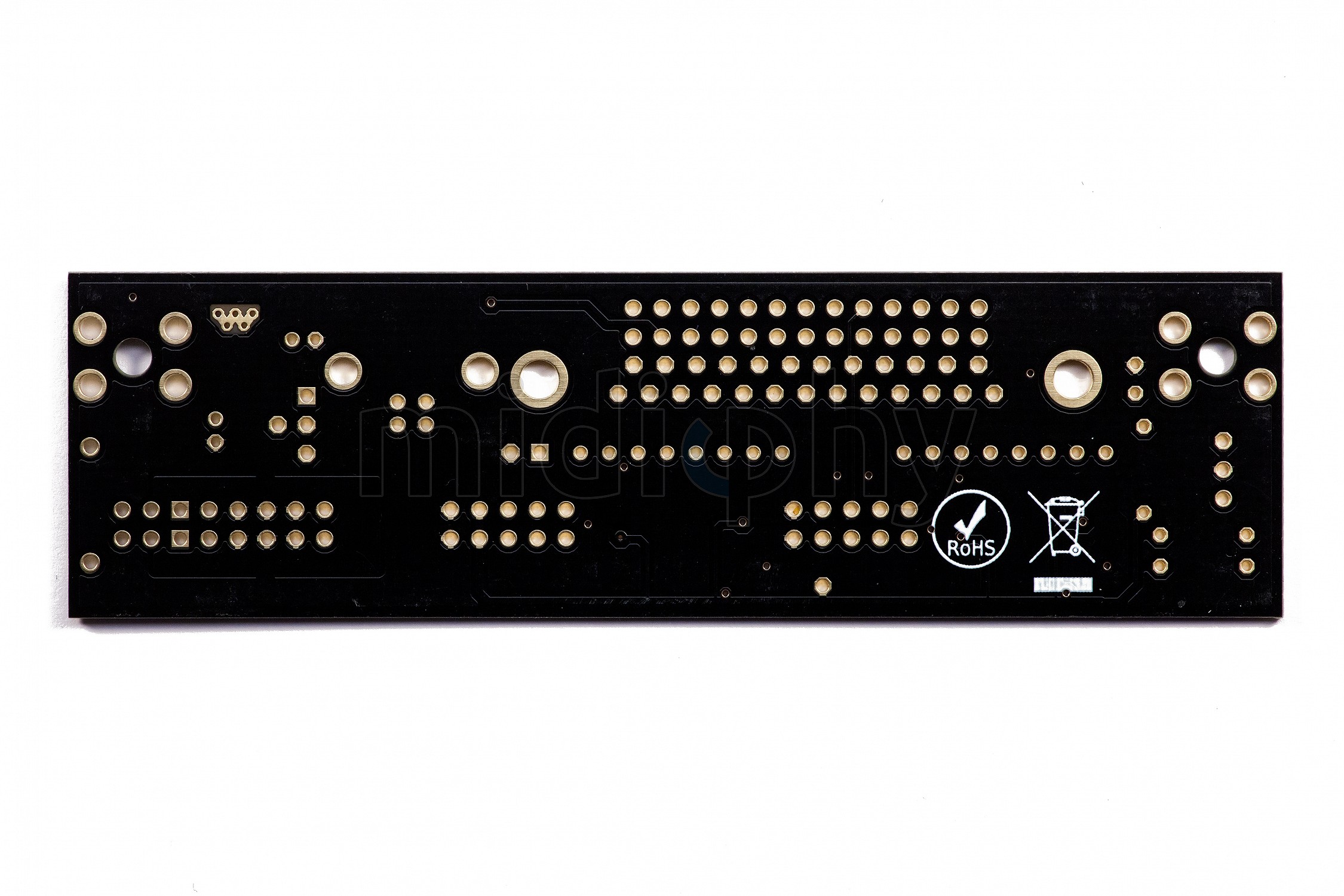

Euroceiver PCB (Eurorack)
Manufacturer: antilog devices
Product ID: P-EUR-01
Version of the line driver receiver suitable for Eurorack mounting. Selectable +5V source from USB, on-board regulator, through the DB-25 cable, or the Eurorack power buss.
Weight: 20 grams
in stock
12.98 €
incl. VAT, excl. shipping
Bill of Materials / Placement Guide
Label
Package
Name
Side
Part Link
Notes
Required Mouser parts
Can be directly transferred into your
mouser cart by copying & pasting the text below into the mouser part list import tool (you
may need to log in at mouser before the tool is available):
https://www.mouser.com/tools/part-list-import.aspx
https://www.mouser.com/tools/part-list-import.aspx
80-C1206C104M5R|2 667-EEU-EB1J100SH|1 581-TAP226K025SCS|1 636-182-025-213R561|1 621-1N4004|1 534-7695|2 595-MC3486NSR|2 649-93992-436HLF|1 517-929836-01-36-RK|1 517-30310-6002|2 538-22-23-2031|1 660-MF1/4DCT52R2200F|2 660-MF1/4DCT52R1002F|1 652-4608X-AP2-101LF|2 538-67068-7041|1 511-LDL1117S50R|1
Required midiphy parts
You can manually add these to your cart
using the links below. If you are buying a midiphy essential kit, these should be included
already. If you are buying plain PCBs, these are necessary to complete your build.
The BOM checker 'bot says:
All parts referenced from the CAD master files have been validated. The BOM should be safe to order!*
* Disclaimer: although we have taken the best care possible, we cannot guarantee 100%
accuracy and we cannot be held liable for erroneous orders when using
this tool, including (but not limited to) incorrect quantities and/or
types of components ordered through midiphy or other suppliers.
